Higher Pressure Line Pipe

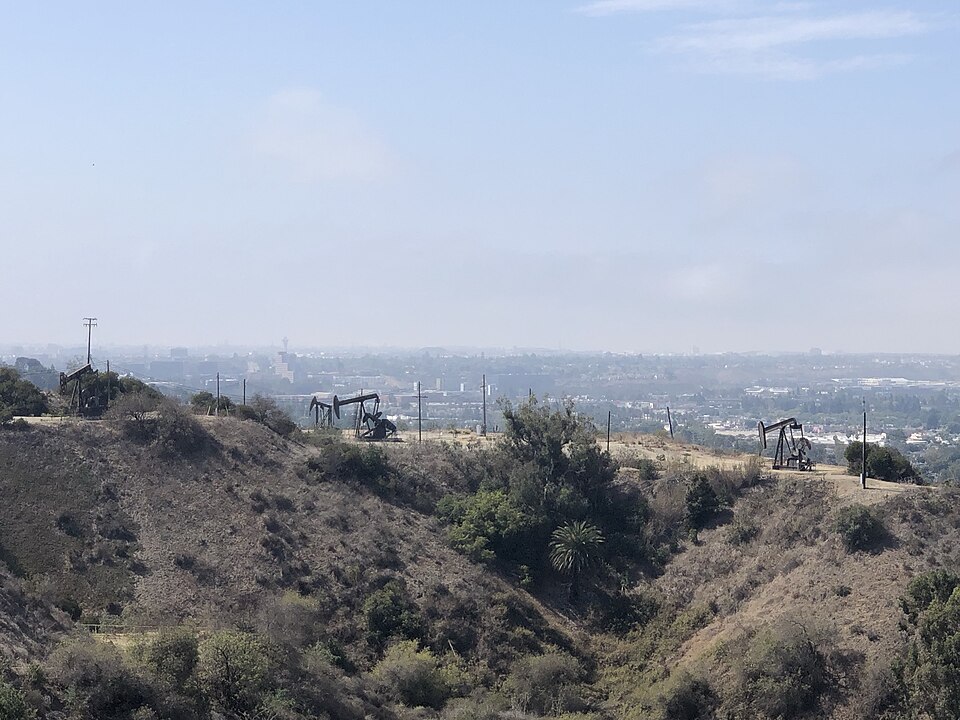

Oil and gas field lines or industrial services using threaded API GRE line pipe routes up to 25 MPa in current anhydride source data.
Products / Line Pipe
GRE Line Pipe DN40-DN1600
Composite line pipe for corrosive process, utility, produced water, desalination, and chemical service, with source-table coverage for API threaded pipe, API 15LR bonding pipe, and PN10, PN16, and PN25 MOS series.
Product Overview
Current line pipe source data covers API anhydride threaded pipe from DN40-DN200 up to 25 MPa, API amine threaded pipe from DN40-DN200 up to 22 MPa, and API 15LR bonding pipe from DN40-DN1000 at 1-5 MPa.
Large-diameter MOS product design sheets cover PN10 and PN25 pipe up to DN1600 and PN16 pipe up to DN1100, with ID, OD, nominal wall thickness, weight, and standard length data by size.
Selection Paths
Typical service paths for GRE line pipe.
Water Treatment and Utility
Process water, desalination, and utility transfer lines using API 15LR bonding routes from 1-5 MPa or MOS PN10/PN16 series where the line list needs larger diameters.

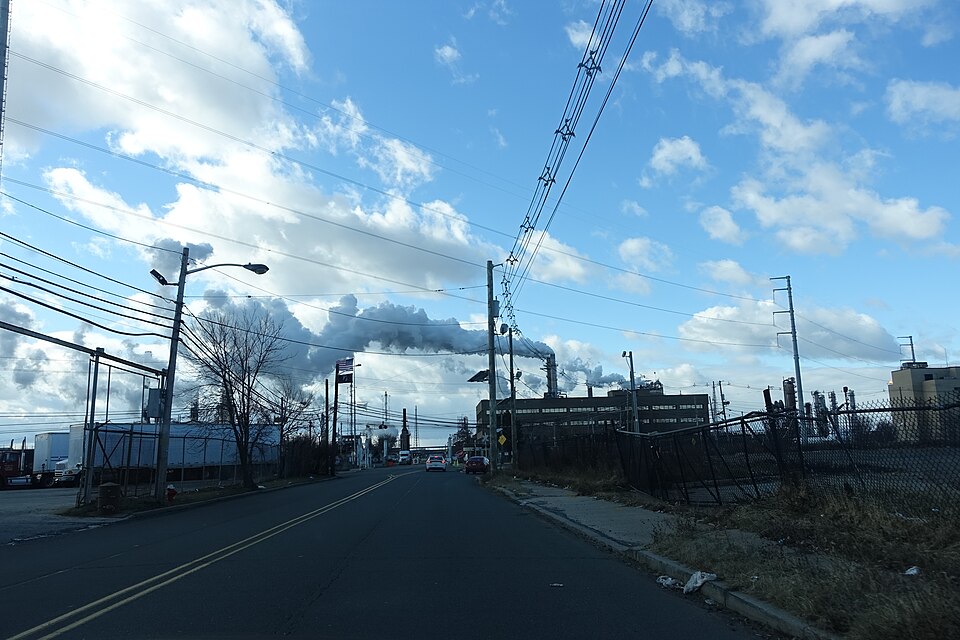

Chemical Processing
Corrosive media service where amine-cured or conductive product routes are specified by operating media, safety requirements, or project standards.
Our Product Range
Available product families and package items.
Anhydride Cured
Product ImageGRE Line Pipe
API Anhydride Threaded GRE Line Pipe
DN40-DN200 threaded line pipe with current source-table pressure classes from 3.5 MPa to 25 MPa and nominal pipe lengths around 8.70-9.14 m.
Amine Cured
Product ImageHigh Temp GRE
API Amine Threaded GRE Line Pipe
DN40-DN200 threaded line pipe with current source-table pressure classes from 3.5 MPa to 22 MPa and separate accessory data for field-threaded components.
API 15LR Bonding
Product ImageBonding GRE
API 15LR Bonding GRE Line Pipe
DN40-DN1000 bonding line pipe with current source-table pressure classes from 1 MPa to 5 MPa and 11.85 m nominal pipe length.
Conductive
Product ImageConductive GRE
Conductive GRE Line Pipe Route
Conductive or anti-static route for projects that specify hazardous-area behavior in addition to the base DN range, pressure class, and resin system.
PN10 / PN16 / PN25
Product ImageMOS Series
MOS Large-Diameter GRE Pipe
PN10 and PN25 product design data extends to DN1600, while PN16 data extends to DN1100 with ID, OD, nominal wall thickness, and length rows.
Accessories
Product ImageFittings & Flanges
Fittings and Transitions
Elbows, tees, reducers, flanges, couplings, and steel transitions for complete line pipe system packages.
Specify the Line Pipe Package From Source Data
A complete RFQ should identify the service media, DN range, pressure class, resin route, connection method, fittings count, line length, and destination market before the quotation is built.
✓Resin system selection
✓Pressure class customization
✓Connection method options
✓Length and diameter specs
✓Fittings package design
✓Export packing requirements
Need help selecting the right product?
Our engineering team can review your project requirements and recommend the optimal GRE line pipe route.
